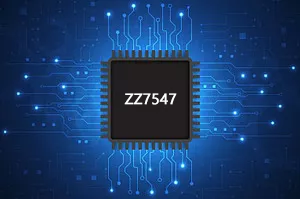

The ZZ7547 is a complete integrated 6GHz Front-End Module (FEM) for 802.11be 4096 QAM applications and systems. It includes a high- linear 6GHz power amplifier (PA), a low-noise amplifier (LNA) with bypass capability, and a transmit/receive (T/R) switch. A power detector with DC voltage output and a coupler with RF output are integrated to provide closed-loop power control within the system.
This highly integrated FEM only requires bypass caps and a DC block cap, thus reducing system footprint,
The ZZ7547 is a complete integrated 6GHz Front-End Module (FEM) for 802.11be 4096 QAM applications and systems. It includes a high- linear 6GHz power amplifier (PA), a low-noise amplifier (LNA) with bypass capability, and a transmit/receive (T/R) switch. A power detector with DC voltage output and a coupler with RF output are integrated to provide closed-loop power control within the system.
This highly integrated FEM only requires bypass caps and a DC block cap, thus reducing system footprint,
5V Supply Voltage
Integrated High-Performance 6GHz PA, LNA with Bypass, T/R Switch, and coupler
Fully Matched Input and Output
Integrated DC power detector (Voltage Output)
Output Power:
+12 dBm, -47 dB DEVM, MCS13
+18 dBm, -43 dB DEVM, MCS11
+20 dBm, -35 dB DEVM, MCS9
+22 dBm, -30 dB DEVM, MCS7
Transmit Gain: 30.5 dB
Noise Figure: 2.2 dB
Receive Gain: 12 dB
Bypass Loss: 12 dB
16-pin LGA 3.0 × 3.0 × 0.85mm
RoHS Compliant & Halogen Free
802.11be Networking Systems
Wireless Routers, Access Points, Residential Gateways
Mobile Devices, Customer Premise Equipments (CPE)
WLAN-Enabled Wireless Video Systems
